Ceramic Lamp holder &Bae

Product Description

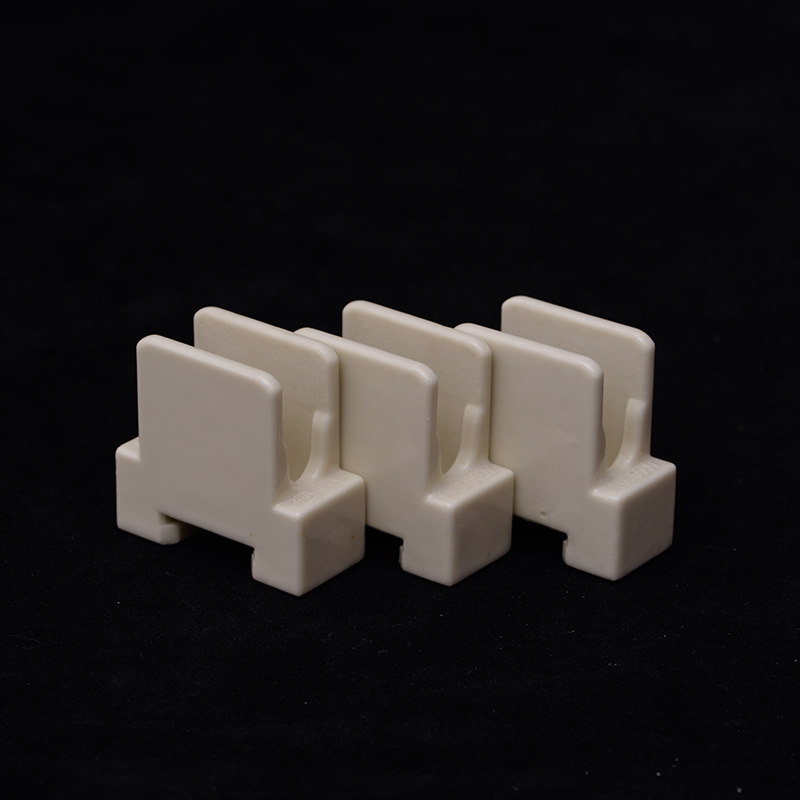

 Ceramic Lamp Holder &Bae

Product Description


We manufactures custom technical ceramics, covering a wide range of customer requirements.

We make use of several forming and machining techniques to process components made from alumina Ceramics.

                                  Product Description
 Product name  Ceramic Lamp holder &Bae
 Place of Origin  Jiangsu, China(mainland)
 Brand Name  Zhong Run
 Type  Ceramic base
 Material  Alumina
 Color  White
 Size  Customzied
 Shape  Custom-shaped
 Producing Method  Hot pressing/Dry pressing
 Design  According to client's drawing or samples
 Payment  T/T, Western Union
 MOQ  1000pieces
 Packing  Carton /Pallet/Wooden case (According to clients requirement)
 Delivery time  Standard Product: Within 3 days
 New developed items: 15days
 Application  Industry Usage
 Features  1. Many kinds of insulated ceramics available
 2. It can satisfy constant's technical request
 3. Good lead-heat capability, Good compressive strength
 4. High resistance, Good air tightness
 5. High temperature and high voltage resistant
 Alumina Ceramic Technical  Parameter



Alumina Content 80-85% 90-96% > 99.5% 99%
General Application Lower Cost Electrical & Mechanical High Strength, Wear Resistant, Electronic, Insulating, Mechanical, Structural & Metalizing Extremely High Purity, Temperature & Strength; Excellent Corrosion & Wear Resistance Porous, Easily Degassed & Machinable

Porosity

(%)

0-.05 0-.05 0-.05 Variable

Density

(gm/cm3)

3.45-3.50 3.55-3.75 3.75-3.95 2.4
Flexural Strength (kpsi) 35.0-40.0 40.0-50.0 50.0-55.0 -

Comprehensive Strength

(kpsi)

260.0 > 300.0 > 300.0 -

Tensile Strength

(kpsi)

15.0-20.0 20.0-28.0 20.0-28.0 -

Linear Coefficient of Thermal Expansion

((cm/cm/°C) 25-300°C 25-700°C)

5.9X10-6 6.5X10-6 6.3X10-6 7.0X10-6 6.5X10-6 7.5X10-6 6.5X10-6 7.5X10-6

Dielecctric Constant at 25°C

(1 MH 10 MH)

8.5-8.9

8.4-8.8

9.2-9.8 9.0-9.6 9.5-9.9 9.3-9.7 -

Dielectric Strength

(Volt/mil)

200 225 225 -

Te Value

(°F °C)

1472 800 > 1832 > 1000 > 1832 > 1000 > 1832 > 1000
Thermal Conductivity at 25°C (cal/sec/cm2/cm/°C) .03-.04 .04-.06 .07-.08 -
Thermal Shock  Good Good Good Good
Safe Use Temperature (°F °C) 2550 1400 3000-3100 1650-1700 3275 1800 3275 1800



Main Products

Application


Company Information

Moulding

The moulding methods are manual, automatic and dry pressing. Ceramics are made by these three methods.





Sintering

Our company has two kilns, which have advantages in similar enterprises. We can burn more ceramic insulator bead in a short time.



Packaging & Shipping

Packing

When the ceramic insulator bead is finished, the person will be responsible for the packing.



FAQ



Contact us if you need more details on Ceramic Lamp Holer. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Ceramic Holder、UV Ceramic Cap. If these products fail to match your need, please contact us and we would like to provide relevant information.
