zirconia ceramic material wear resistant ceramic plunger
| Packaging: | On-demand |
|---|---|
| Productivity: | 100ton/mouth |
| Brand: | JIANGHE |
| Transportation: | Ocean,Land,Air |
| Place of Origin: | made in china |
| Supply Ability: | 30Tons/week |
| Port: | Shanghai Port |
Product Description
Product Introduction

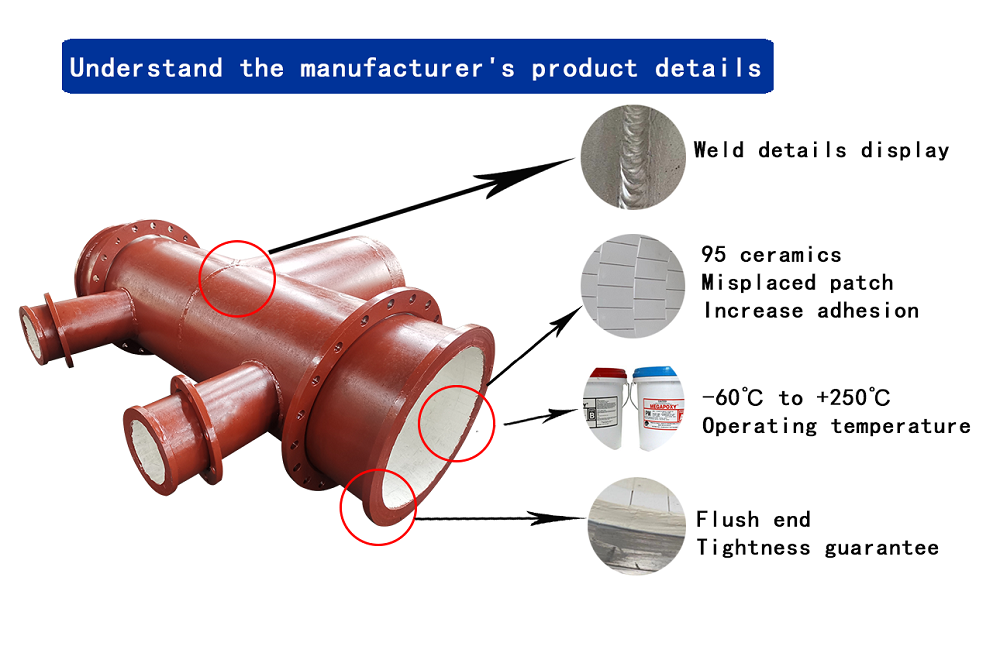

The inner ceramic composite pipe is composed of three layers: outer steel pipe layer, corundum layer, and ceramic glue layer. The inner ceramic layer is white from the surface. The ceramic is generally 95 ceramic, and the temperature is generally below 200°C.
At present, the common ceramic sheets lined with ceramic composite pipes are: ceramic block, dovetail mutual pressure, welding type, mosaic, card slot and so on.It has the characteristics of wear resistance and long service life
Product performance
1. Large hardness
Rockwell hardness HRV 80-90
2. High wear resistance
Wear resistance is equivalent to 20-30 times of high manganese steel
3. Light weight
Its density is 3.9g/cm³, which is only half that of steel, which can greatly reduce the equipment load
4. Imported glue
Magbao imported glue, bonding strength: 10Mpa, working temperature: -60℃ to +250℃, welding type, wear resistance up to 800℃
Specifications
Technical parameters of wear-resistant ceramic pipes
Brand: Jianghe
Manufacturer: Jiangsu Jianghe Machinery Manufacturing Co., Ltd.
Pipe diameter: ≥DN100
Steel pipe thickness: ≥4mm
Steel pipe material: Q235 or stainless steel
Ceramic thickness: 4mm, 6mm, 8mm, 10mm, etc.
Connection method: flange, welding, casing, V-connector
Working pressure: ≤1.0MPa (other pressures need to be communicated with customer service)
Ceramic sheet technical indicators
Ceramic marking: 92-95
Bulk density: 3.9g/cm³
Tensile strength: 1030MPa
Flexural strength: 212MPa
Hardness HRV: 80-90
Manufacturer Service
1. Free technical answers
2. Free CAD or 3D drawing
3. Paid surveying and mapping services
